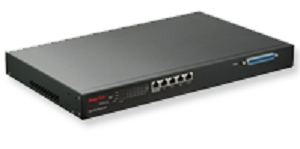

Draytek VigorTalk ATA-24

The DrayTek VigorTalk ATA-24 SH is an Analogue Phone Adaptor for VoIP systems. It provides 24 FXS Ports (analogue phone ports - ports into which you can plug any regular analogue phone, cordless DECT base or other analogue phone equipment). It provides an alternative to native digital VoIP phones and is ideal where you have legacy equipment which you wish to retain. Analogue terminals (phones) are also ideal for higher risk environments, where you may wish to reduce the possibility of damage or loss of more expensive IP phones.

Key Features

• Analogue Phone Adaptor
• 24 FXS Ports
• Ideal for VigorIPPBX
• SIP Compliant
• Codecs : G.711, 729A, 723.1, 726
• Echo Cancellation & Jitter Buffer
• Caller ID (ETSI)

Each of the DrayTek  VigorTalk ATA-24 24 ports can be registered as a unique extension on your PBX; that can be a local PBX on your LAN (such as the VigorIPBX 2820), a remote SIP server or hosted IP PBX service.

Connectivity

The DrayTek VigorTalk ATA-24 SH uses an RJ-21 type socket on the front for connection into your telecomms infrasructure. If you want to expand this out into 24 individial RJ11 phone sockets, you can use the optional components, RJ1124P (24 port RJ11 panel) and CABRJ21MF (2-Metre RJ21 cable to connect ATA24 to RJ1124P).
